Compact Manifold

ONE EQUIPMENT, YOUR COMPLETE SOLUTION for the Production and Well Testing Manifold.

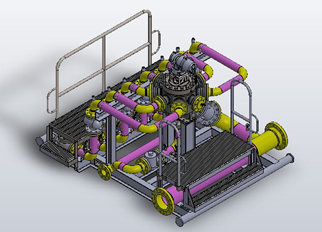

The Multiport Selector Valve (MSV) Compact Manifold includes electric actuator, inlet and outlet pipes, valves, instrumentation, electrical facilities and operation platforms provided on a structural skid as a self-contained unit for easy procurement, transportation, installation and operation

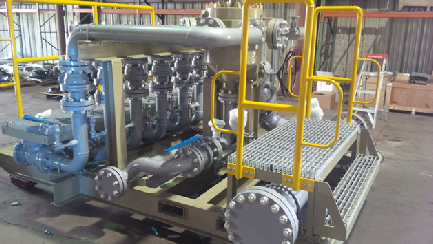

The complete and compact solution fabricated, assembled and tested in factory is received in the field ready to install over a pad, for immediate well connection and subsequent operation. The compact and spaced saver designs make this concept ideal for onshore/offshore application.

In-shop fabrication, inspection and FAT results in a more reliable and cost effective solution reducing the messy and costly field material and labor management.

Main features

• Modular, Compact and self-contained.
• Low maintenance.

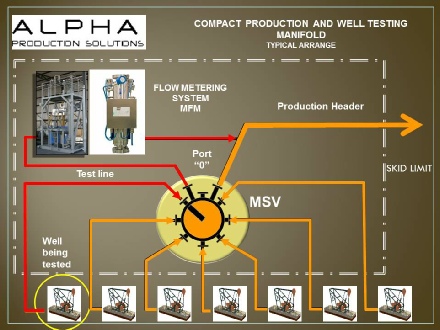

• Combined solution Multiport Selector Valve-Flowmeter facility
• Compact design and reduced footprint = Less ecological impact.
• No concrete foundation required.
• Shop fabrication and FAT: Systems ready to install, Plug & Play.
• Several Skids connected in tandem provide a cluster for 14, 21, 28 or more Wells.
